Product Name：DIGITAL INVERTER AC/DC TIG/MMA/PULSE WELDING MACHINE
Product Model：WSME200
Product Brief：Compact design
Microprocessor control
Comprehensive protecting function
1.AC/DC TIG/MMA/pulse 4 in 1, much compact design for hand carry.
2.Microprocessor control: simple operation, more perfect welding performance.
3.Pulsing adds arc stability, reduces heat input and warpage and can increase travel speeds.
4.The unique air duct design: failure rate greatly reduced, extending the service life of the machine.
5.Auto-protection against overvoltage, under voltage, default phase, against lightning stroke, overcurrent, over heat etc.
6.Compatible with network or generator use.

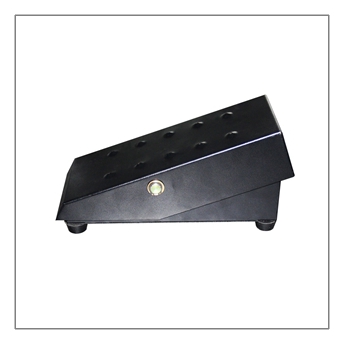

7.Workable with foot pedal control.
Model
|
WSME200 |
|
MMA |
TIG
|
Input power voltage（V）
|
AC220V+15% 1PH
|
Rated input power capacity(KVA)
|
7 |
4.6 |
Rated input power capacity
|
20 |
20.9 |
No-load voltage(V)
|
60 |
60 |
Output current range(A)
|
20-315 |
20-315 |
Rated output voltage
|
32.6 |
22.6 |
Post-gas time(S)
|
|
0-10 |
Pre-flow time (S)
|
|
0-10 |
Pulse current(A)
|
|
5-200 |
Slope-down time (S)
|
|
0-10 |
Pulse frequency (HZ)
|
|
0.1-20 |
Pulse width(%)
|
|
10-90 |
Duty cycle(%)
|
60 |
No-load consumption (W)
|
60 |
Efficiency（%）
|
85 |
Power factor
|
0.93 |
nsulation class
|
F |
Protection class
|
IP21S
|
Weight(KG)
|
20 |
Diamension(mm)
|
480X201X295 |
Metal fabrication workshops
Repair and maintenance
Chemical and process industry
