DIGITAL INVERTER AC/DC TIG/MMA/PULSE WELDING MACHINE

Your location：Home >> DIGITAL INVERTER AC/DC TIG/MMA/PULSE WELDING MACHINE

Product Name：DIGITAL INVERTER AC/DC TIG/MMA/PULSE WELDING MACHINE

Product Model：WSME350

Product Brief：1.Micro-digital IGBT inverter technology, it can save groups of usual welding data. 2.With the function of AC/DC, TIG and Stick(MMA) with pulse. 3.Compact size, intelligent Pulse TIG 2T/4T function. 4.Outstanding feature: Good arc stiffness, strengthening welding energy, strong reverse cleaning ability, wide clear width, welding continuously without arc breaking at small current.

Back >>

Feedback Form:

E-mail：	*
Message：	*

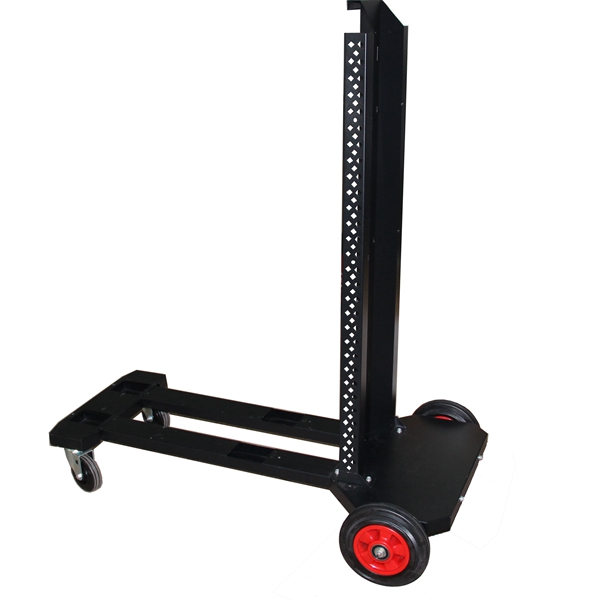

1. Compact design: trolley, water tank, power source can be selected according to applications.

2. Microprocessor control: simple operation, more perfect welding performance.

3. Comprehensive protecting function, with the protection of overvoltage, under voltage, default phase, against lightning stroke, overcurrent, over heat etc.

4. The unique air duct design: failure rate greatly reduced, extending the service life of the machine.

5. Unitization design: the machine design consists of 4 units-control unit, input unit, inverter unit, output unit. Only need replace the related unit power board for maintenance, but professional debugging is unnecessary. Quickly repaired just within 10 minutes .

Back >>

Model	WSME350
	MMA	TIG
		Adjustment range	Preset
Input power voltage(V)	AC380V±15% 3PH
Input voltage frequency(HZ)	50/60
Rated input power capacity(KVA)	15	10.5
No-load voltage(V)	67	67
Output current range(A)	40-350	5-350
Constant current(A)		5-350
Pre-flow(S)		0-10	0.1
Hot start current(A)		10-350	50
Arc-striking current(A)		5-350	40
Up-slope(S)		0-10	5
Spot welding(S)		0-10	3
Base current(A)		5-350	10
Peak current(A)		5-350	150
Pulse width(%)		10-90	50
Pulse frequency(HZ)		0.1-20	5
Clear width(%)		10-90	30
Clear depth(%)		-50~+50	0
AC frequency(HZ)		20-200	80
Down-slope(S)		0-10	5
Arc-ending current(A)		5-350	20
Post-gas (S)		0-10	5
Duty cycle(%)	60%
Weight(KG)	40
Dimension(mm)	622×280×480
